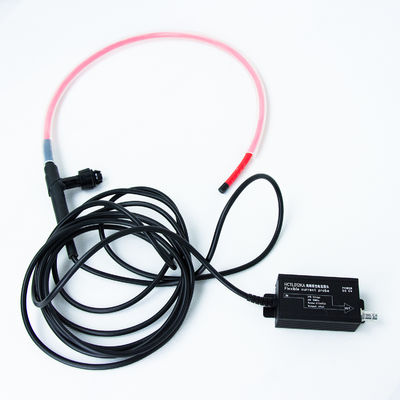

MEASTEK HCTL012KA High Frequency Flexible Current Probe For Monitoring Power Transmission Lines
1.10MHz bandwidth, can detect high-frequency sinusoidal current waveform, high-frequency current detection instrument plays a role in the power transmission line high-frequency interference current monitoring.
0.5mV/A sensitivity, with 1% typical accuracy, can measure small current changes,It is suitable for weak current signal monitoring in power system.
10KV insulation voltage resistant, suitable for large current, high voltage power transmission line current measurement.
With an outer diameter of 8mm, the probe ring is flexible and can be freely inserted and removed. In distributed current monitoring scenarios, it is easy to install in power poles and towers.
USB power supply, easy to use, standard BNC output interface is easy to connect professional measurement equipment, to achieve power line current data acquisition and analysis.
Specifications
| Model | HCTL012KA | |
| Sensitivity (mV/A) | 0.5 | |
| Peak | Current (KA) | 12 |
|
dI/dt(KA/μs) |
40 | |
| Maximum noise (mV Vpp) | 3.5 | |
| Attenuation characteristics(%/ms) | 0.35 | |
| Low frequency bandwidth -3dB(Hz) | 0.4 | |
| High frequency bandwidth -3dB(MHz) | 10 | |
| Typical accuracy |
1% |
|
| Insulation voltage value |
10KV |
|
HCT(S)XXXXA Series Other Technical Parameters
| Maximum output voltage |
6Vpk |
|
| Terminal load |
≥100kΩ |
|
| Power supply mode | USB 5V (standard adapter) | |
| Operating temperature range | Integrator |
0℃ - 50℃ |
| Probe ring |
0℃ - 100℃ |
|
| Storage temperature range |
-40℃～80℃ |
|
Product Description
(Take HCTS0120A as an example)
1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)
4) Test connection diagram.
Mechanical specifications
| Model | HCTSXXXXA |
| Typical value of flexible probe circumference (customizable) |
80mm |
| Typical value of induction ring body diameter |
1.6mm |
| Typical value of flexible probe diameter (customizable) |
25mm |
| Induction loop connection cable length | 1 M (customizable) |
| BNC connection cable length | 1 M or 2 M, 1 M is Standard |
|
Integrator body dimensions (including BN port dimensions) |
About 110(L)*47(W)*30(H)mm |
| USB cable (AM-BM) | About 1.8m |
| USB output adapter | About 59mm*30mm*20mm |
| Probe weight | About 150g |
| Box weight (including probe) | About 960g |
Care And Maintenance
1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.
Packing List
| Name | Quantity |
| Current probe integrator | 1 piece |
| Current probe flexible induction coil | 1 piece |
| USB output adapter (5V/1A) | 1 piece |
| USB power cable | 1 piece |
| BNC output cable | 1 piece |
| Electronic manual | 1 serving |
