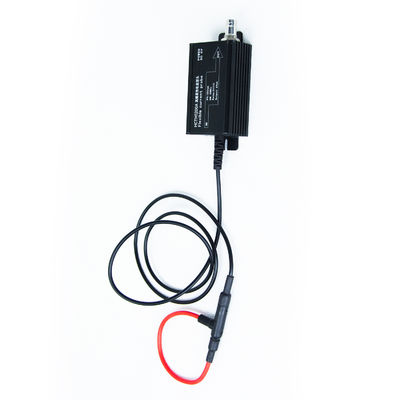

MEASTEK HCTM1200A High Sensitivity High Current Test Probe 0.9Hz Excellent Low Frequency Performance Dedicated For IGBT Current Measurement

MEASTEK HCTM1200A High Sensitivity High Current Test Probe 0.9Hz Excellent Low Frequency Performance Dedicated For IGBT Current Measurement

High sensitivity for large currents

The high sensitivity of 5mV/A enables it to maintain high accuracy when measuring large currents. It can accurately measure the peak current of 1.2KA, which is an indispensable tool for monitoring and maintaining large current equipment such as large mechanical equipment and industrial production lines. ​

Fast response current probe

dI/dt reaches 10KA/μs, and has the ability to quickly respond to current mutations. In some occasions where the current changes rapidly, such as the switching moment of power electronic equipment and the starting process of the motor, it can capture the current change in a timely and accurate manner and provide you with a complete current change curve. ​

Stable and low-noise measurement environment

The maximum noise is 10mV Vpp, creating a stable and low-interference measurement environment for you. Even in industrial environments with strong electromagnetic interference, the accuracy of the measurement data can be guaranteed. ​

Outstanding low-frequency measurement capability

The low-frequency bandwidth -3dB is 0.9Hz, which performs well in low-frequency current measurement. For some low-frequency operating equipment, such as large wind turbines, low-frequency transformers, etc., it can accurately measure their currents, providing strong support for the stable operation and maintenance of the equipment.​

Sturdy shell, durable and resistant

The sturdy shell design has good impact and vibration resistance, can adapt to harsh working conditions, and extend the service life of the equipment.

Specifications

HCT(S)XXXXA Series Other Technical Parameters

Product Description

(Take HCTS0120A as an example)

1) Input interface: current probe test signal input terminal.
2) Output interface: current probe integrator signal output terminal.
3) USB 5V power supply interface: standard USB (type B) interface. (USB power supply cable and power adapter are standard)

4) Test connection diagram.

Mechanical specifications

Care And Maintenance

1) Keep the probe clean and dry.
2) If cleaning is required, wipe with a soft dry cloth. Do not use chemical cleaning agents.
3) When the probe is not in use, please put it in the packaging provided and place it in a cool, clean and dry place.
4) When transporting the probe, be sure to put it in the packaging provided by our company to prevent shock.
5) Do not pull the input and output lines hard to avoid excessive twisting, bending or knotting.

Packing List
